CartonWrap DUO

Boxing Solutions

Boxing Solutions

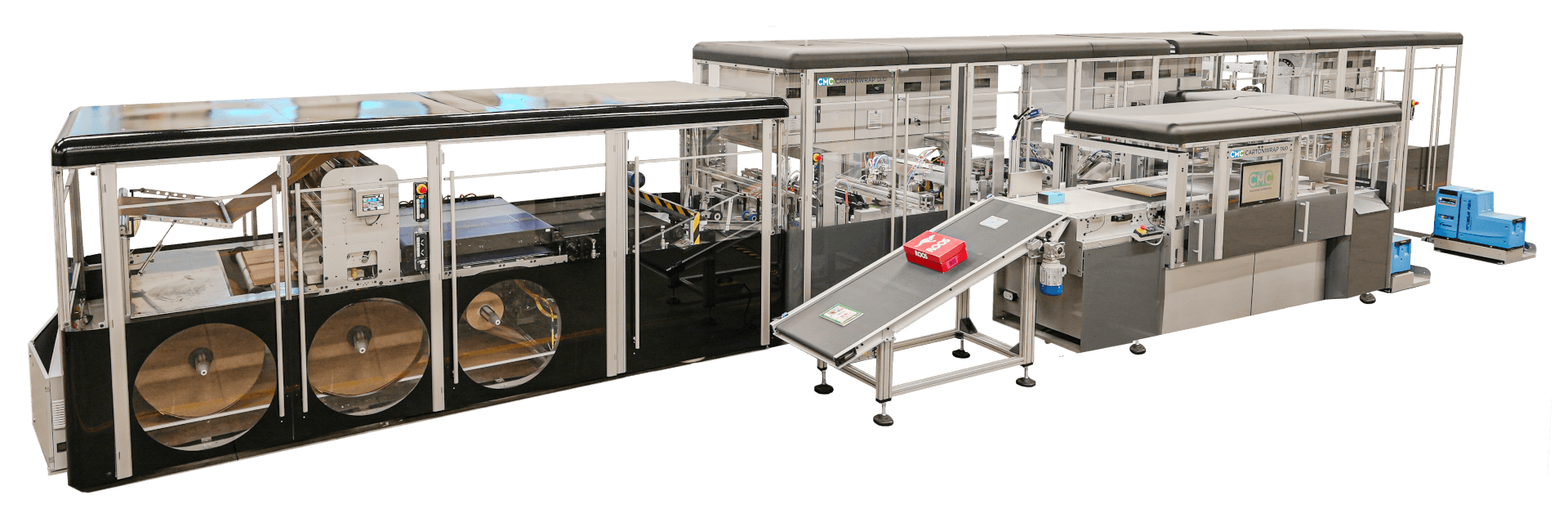

CartonWrap DUO

Right-sized boxes and envelopes in a single machine

Unique technology able to process both right-sized boxes and envelopes on demand optimizing the cardboard consumption

Unique Box Design

Each box is formed with adjustable inner flaps that lock multi-item orders firmly in place. Easy to open. Resealable. Ready for returns.

Highlights

No void Fill

A right-sized box is directly built around the oder.

PROTECTIVE BOX DESIGN

NO DATA DEPENDENCY

Technical Specifications

  • FANFOLD SPECS: from 350 mm to 600 mm
  • WAVE LINE SPECS: MAX REEL WIDTH: 600 mm
  • MINIMUM ENVELOPE: W 250 x L 160 x H 8 mm
  • MAXIMUM ENVELOPE: W 600 x L 380 x H 25 mm
  • MINIMUM BOX: W 250 x L 160 x H 25  mm
  • MAXIMUM BOX: W 600 x L 380 x H 230 mm
  • MAXIMUM MECHANICAL SPEED: 900 boxes/hour
  • MAX PRODUCT WEIGHT 10 Kg

Features

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard

Ancillary
Equipment

  • Up to 6 sides reading on product input conveyor
  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Invoice printer
  • Selective enclosure feeders
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard
  • Camlogger
  • Packvertizing
  • RFID Reader
  • Sorting system
  • Trimming shredder
